Product Overview

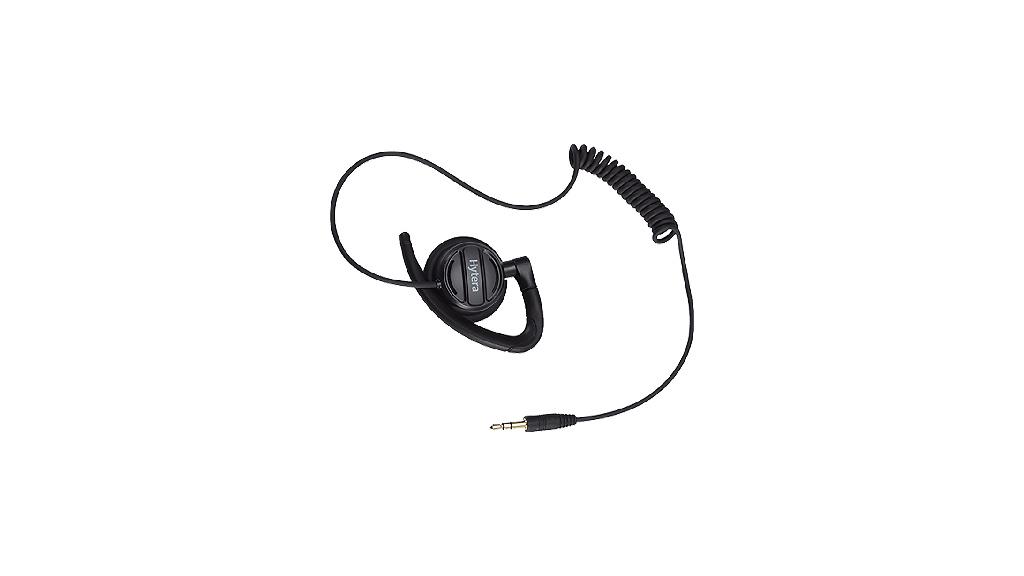

The Hytera EH-02 is a receive-only swivel-style earpiece with a 3.5 mm plug.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | EH-02 |
| Weight | about 16 g |
| Color | black |
| PTT Key | none |
| VOX | none |
| Emergency key | none |
| Connector | 3.5mm jack plug |
| Speaker power | 50 mW (rated), 100 mW (max.) |
| Speaker impedance | 150 Ω ±15% @1kHz |
| Operating temperature | –20℃ to 60℃ |
| Storage temperature | –40℃ to 85℃ |
| Connection | 3.5 mm plug; receive only |
| Controller-dependent pairing examples | ACM-01: TC-446S, TC-510, TC-610, TC-620, TC-700, PD4 / PD5; ACN-01: PD7, PD985, PT560H, PT580H Plus; select the correct controller for the exact host |
| Additional controller-dependent examples | ACN-02: X1e, X1p, Z1p, PD6, PDC550; ACN-02P: HP5 / HP6 / HP7, PDC680 / PTC680 (A10), PDC550 |
| Direct-connection restriction | Receive-only earpiece requires an appropriate PTT / MIC controller or speaker microphone; not a universal direct radio connection |
