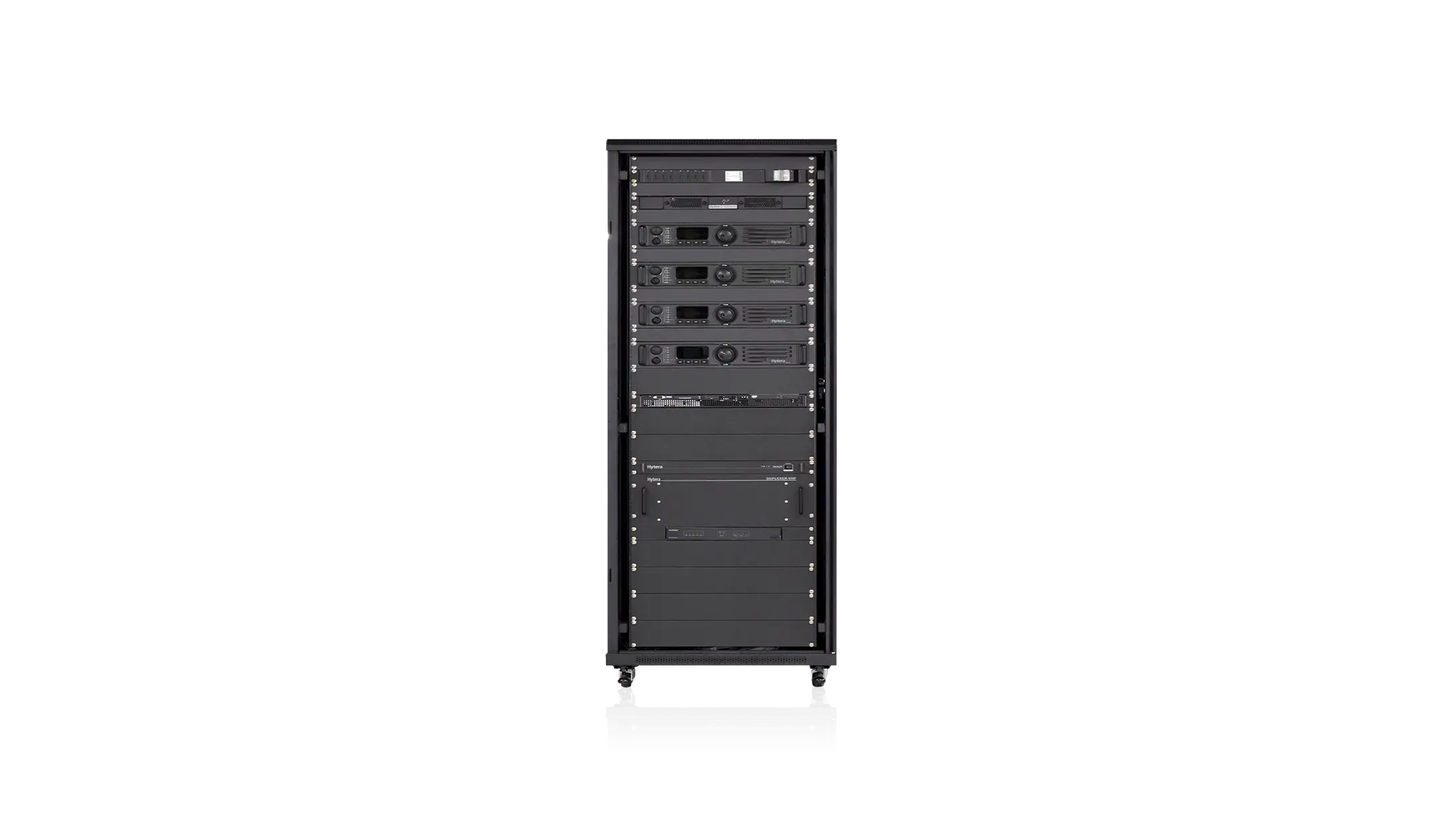

Hytera DS-6211 DMR Trunking Lite Base Station

Hytera DS-6211 DMR Trunking Lite Base Station is a digital trunking base station based on ETSI open standard DMR Tier 3.The focus is on transportation, energy resource, public utilities, public safety, etc. With advanced design, Hytera DMR Trunking Lite Base Station is provided with special features such as smooth migration, flexible networking and rich functionalities.

Key Features

System Performance
Subscriber Capacity per MSO	10000
Max. Number of Memberships	1000000
Max. Number of Interconnected MSOs	≤128
MS Capacity per BS	500

BS Specificaition
Standard Compliance	PDT/DMR
Frequency Range	UHF1：400-470MHz;UHF2：450-520MHz;UHF3：330-400MHz;VHF：136-174MHz
Carrier Capacity	1-8 carriers（Maximum up to 24 carriers）
Power Supply	DC 48V; AC 220V
Clock Synchronization	GPS/PTP
Operating Temperature	Extreme: –30 to +60°C; Normal: 15 to 35°C
Storage Temperature	–40°C to +85°C
