Product Overview

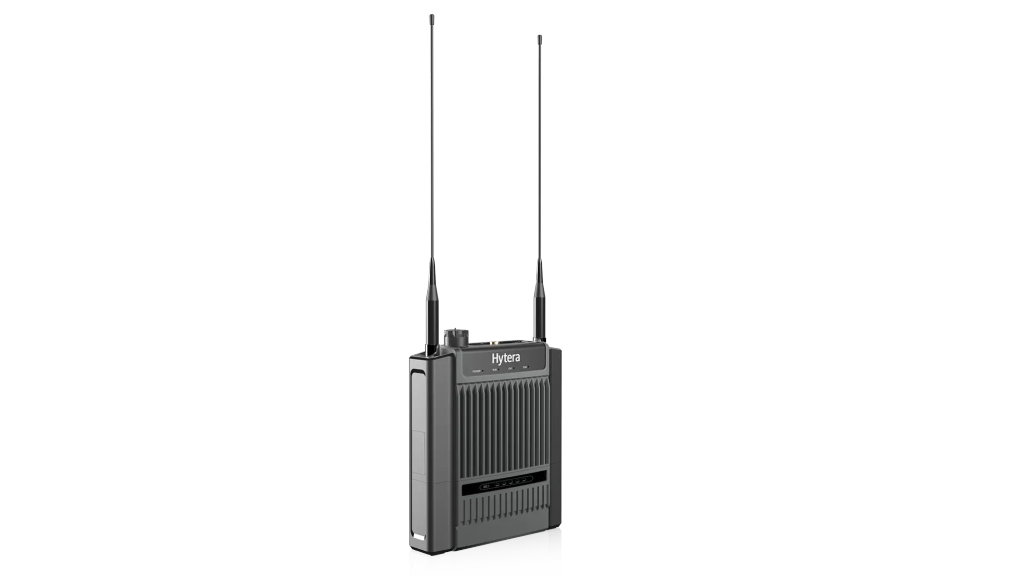

The Hytera E-pack200 DMR is a portable DMR Tier II ad-hoc repeater supporting two simultaneous voice paths and networks of up to 31 nodes. Separate VHF and UHF hardware versions are available.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | E-pack200 DMR |
| Frequency | 136–174 MHz (VHF version) or 400–470 MHz (UHF version) |
| Protocol | DMR conventional (Tier II) |
| Networking capacity | 31 |
| Channel spacing | 12.5 kHz |
| Rated voltage | 14.8 V DC |
| Battery capacity (optional) | 148 Wh |
| Charging time | Rapid charge 2h 80%; 3h fully charged |
| Battery life | About 9 hours (15–85 duty cycle) |
| Dimensions (H x W x D) in mm | 211 x 62 x 235 |
| Weight | 3.1 kg (with battery) |
| Output power | 1W / 5W / 10W (per way) |
| Operating temperature | -30°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Waterproof & Dustproof | IP67 |
| GNSS | GPS |
| Deployment options | Vehicle, backpack, pole or wall installation; mounting accessories depend on supplied kit |
