Product Overview

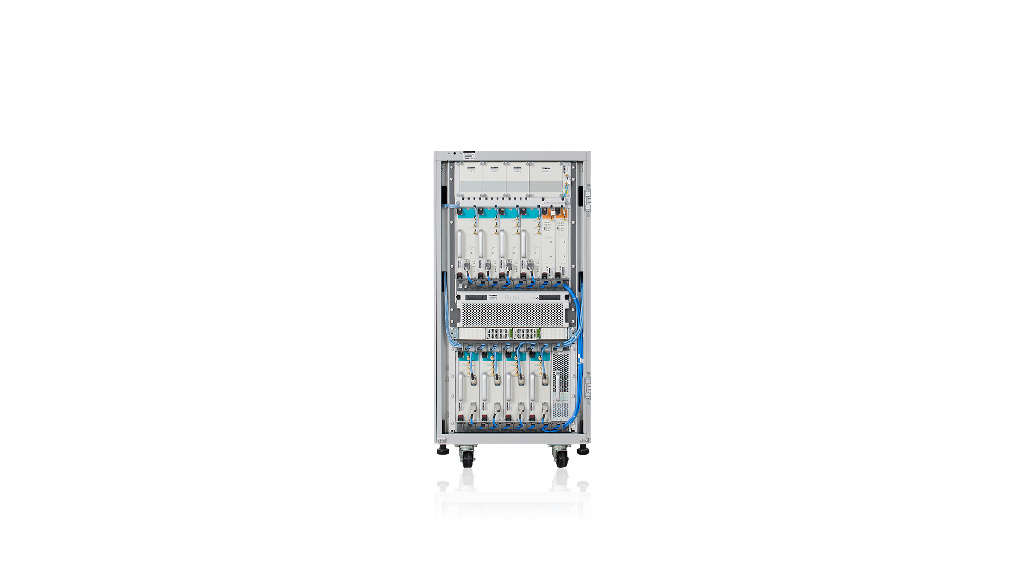

Hytera DIB-R5 Advanced is a modular TETRA base station for indoor deployments. It uses one to three racks according to capacity requirements and supports configuration-dependent carrier capacity, receiver diversity and redundancy options.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | DIB-R5 Advanced |
| Carrier capacity | Up to 12 with cavity or switched [4] combiners; up to 4 with switched [2+2] or high-power configuration |
| Output at antenna connection | Cavity 44 dBm; switched [4] 40 dBm; switched [2+2] 44 dBm; high-power 47 dBm |
| Supply | 110/230 VAC or 48 VDC |
| Operating temperature | -30 to +55 °C |
| Synchronisation options | GNSS: GPS, Galileo, GLONASS, BeiDou; PTP |
| Receiver diversity options | Single, dual or triple diversity; configuration dependent |
| Frequency by combiner | Cavity: 320-380, 380-470 or 806-869 MHz; switched [4] or [2+2]: 380-430 MHz; high power: 380-470 MHz |
| Deployment form | Modular indoor base station; one to three racks depending on capacity |
| Redundancy options | Controller, carrier, MCCH, power supply and transport-network connection; configuration-dependent |
Request a Quote
Contact DAXUN TECHNOLOGIES for pricing and availability. Please include the model, quantity and required configuration in your enquiry.
