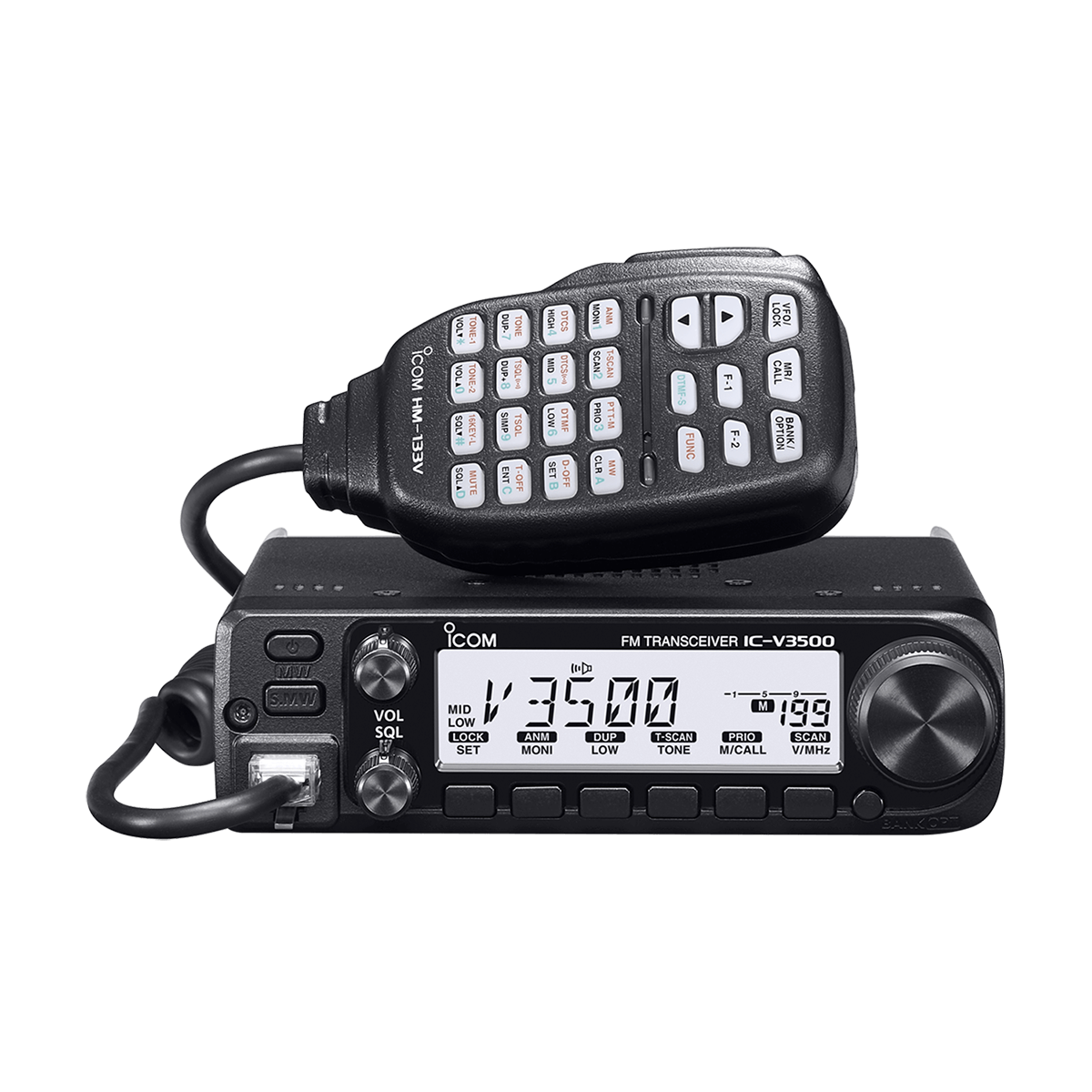

Icom IC-V3500 144 MHz FM TRANSCEIVER

Icom IC-V3500 144 MHz FM TRANSCEIVER

65 W Powerful RF Output Power
The IC-V3500 is a rugged 2 m mobile transceiver providing powerful 65 W* of output power. The output power level is selectable in four steps and the selected power is displayed.

Category:

Description

Frequency coverageUSA versionTransmit144–148 MHz
Receive    136–174 MHz*
TPE Version, KOR VersionTransmit/Receive144–146 MHz
THA VersionTransmit/Receive144–147 MHz
Number of memory channels207 channels (including 1 call and 6 scan edges)
Type of emissionF2D, F3E (FM)
Frequency stability±3 ppm
Power supply requirement13.8 V DC ±15%
Current drain (approximate)Tx 65 W11 A
Rx Max. audio/Stand-by1.5 A/0.4 A
Antenna impedance50 Ω (SO-239)
Operating temperature range–10°C to +60°C; 14°F to +140°F
Dimensions
(W × H × D; Projections not included)		140 × 40 × 118 mm;
5.5 × 1.6 × 4.6 in
Weight (approximate)1.1 kg; 2.4 lb

* Guaranteed range TX/RX: 144–148 MHz.



Transmitter

Output power (13.8 V DC)USA version65 W, 25 W, 10 W, 5 W
TPE version24 W, 10 W, 5 W
KOR version50 W, 25 W, 10 W, 5 W
THA version60 W, 25 W, 10 W, 5 W
Max. frequency deviation±5.0 kHz/±2.5 kHz (W/N)
Spurious emissionsLess than –60 dBc
Microphone impedance600 Ω (8-pin modular)


Receiver

Sensitivity (at 12 dB SINAD)Less than 0.18 μV
SelectivityWideMore than 6 kHz (at 6 dB)
Less than 14 kHz (at 60 dB)
NarrowMore than 3 kHz (at 6 dB)
Less than 9 kHz (at 55 dB)
Spurious responseMore than 60 dB
Audio output power4.5 W typ. (10% dist., 4 Ω load)
Ext. speaker connector2-conductor 3.5 (d) mm (1/8ʺ)/4 Ω

All stated specifications are subject to change without notice or obligation.



Applicable U.S. Military Specifications

Standard

MIL-810 G

Method

Procedure

Low Pressure500.5I, II
High Temperature501.5I, II
Low Temperature502.5I, II
Temperature Shock503.5I-C
Solar Radiation505.5I
Vibration514.6I
Shock516.6I, IV

Also meets equivalent MIL-STD-810-C, -D -E and -F.



Supplied Accessories

  • Remote control Mic, HM-133V or Hand Mic, HM-154*
  • Mounting bracket kit
  • Microphone hanger*
  • DC power cable
  • Spare fuses

(* May differ or not supplied, depending on version)
