Key Features

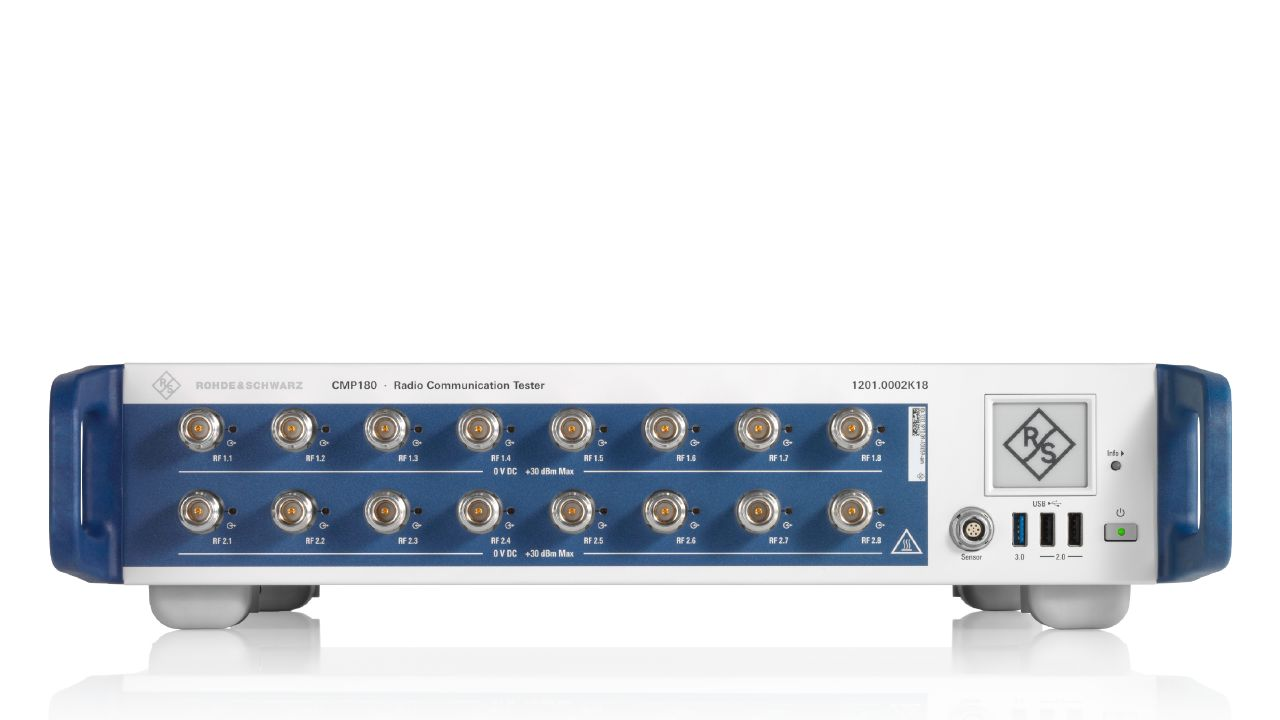

The CMP180 radio communication tester is a future-proof, non-signaling testing solution for wireless devices in research and development, validation and production. Together with advanced frequency, bandwidth and RF capabilities, it can be used to test new wireless technologies such as Wi-Fi 6E, Wi-Fi 7, Wi-Fi 8, 5G NR FR1 and many more. Twice as many analyzers (2xVSA), generators (2xVSG) and RF ports (2×8) allow technologies and devices to be measured simultaneously in a VSA/VSG single-box tester. The R&S®CMPflexx system can have four analyzers (4x VSA), four generators (4x VSG) and four times eight RF ports (4×8).
► Compact design:
2 HU × 19”, 1 HU per channel
► RF frequency up to 8 GHz,
up to 500 MHz bandwidth
► Excellent RF parameters and
high output power
► Up to two analyzers and two generators
► Linux operating system
► Simple and flexible option concept
► Intuitive web based R&S®CMsquares user
interface
► R&S®CMPflexx: ultimate flexibility with the
scalable R&S®CMP180 system
► R&S®NRPx power sensor connector
► Self-alignment for accuracy adjustment
at any time
► Optimized production throughput with broadcast
mode and smart channel
► Broadcast mode simultaneously transmits to
all RF ports/outputs for receiver (RX) testing of
the DUT
► Smart channel for efficient parallel testing
► Analyzer and generator list mode for high speed
and flexibility
► Waveform creator for on-instrument parametric
waveform generation
► Multi-evaluation measurements for very fast
highspeed measurements
