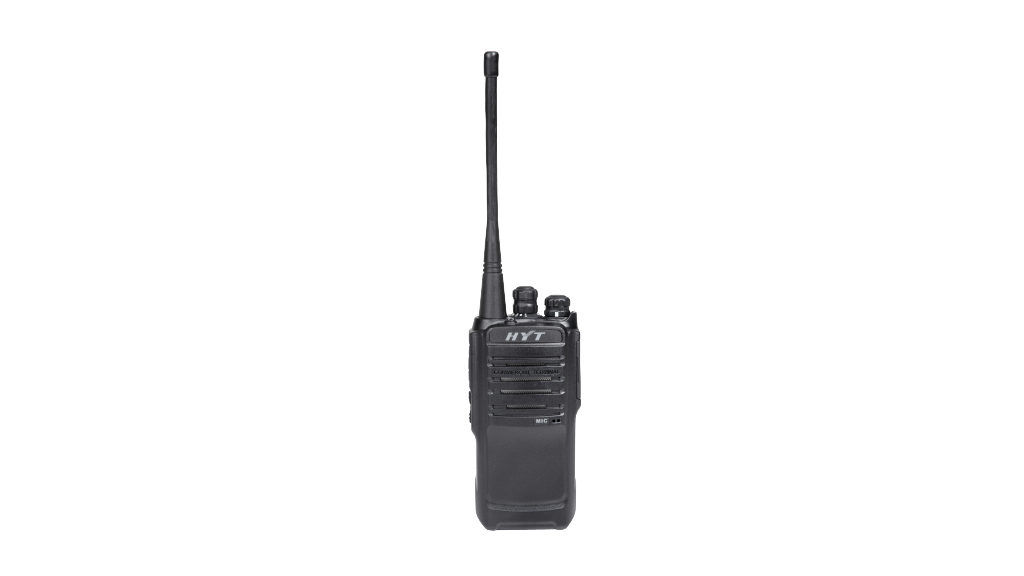

Hytera TC-508 Enhanced High-Quality Commercial Two-way radio
,

Hytera TC-508 Enhanced High-Quality Commercial Two-way radio

The Enhanced Version of TC-508 is a robust analogue two-way radio built for demanding work environments. Its specially designed audio chamber delivers exceptionally clear and natural voice quality. Equipped with a high-capacity battery and supported by the Hytera app for quick configuration and management, it keeps teams connected and operations running smoothly. Perfect for commercial enterprises and security teams operations.

SKU: HYT-TC-508 Categories: ,

Key Features



Clear & High-fidelity Audio

Unique front-rear cavity audio chamber and steel blind-hole speaker grille deliver clear, powerful sound.


Long-lasting Battery

Equipped with a 1700mAh high-capacity battery, providing up to 14 hours of operation under the 5-5-90 work cycle.


One-touch Battery Indicator

LED indicators display power status at a glance; check remaining battery life with a single press.


Hands-free VOX Function

VOX allows hands-free communication with an earpiece, eliminating the need to press the PTT key.


Efficient Radio Management

Manage your radio via the Hytera app: programming, batch configuration, frequency backup, and more.


Channel Copy & Air Clone

Quickly copy analogue channels from any radio or clone TC-508 configuration to multiple devices with Air Clone.
General
Frequency Range400-480MHz
Channel Capacity48
Zone Capacity3
Channel Capacity per Zone16
Channel Spacing12.5kHz/25kHz
Operating Voltage7.4V(Rated)
Battery1700mAh Li-ion
Battey Life(5/5/90 Duty Cycle,High TX Power)15H
Frequency Stability±2 ppm
Antenna Impedance50Ω
Dimension(H*W*D)113*54*32 mm
Weight<250g
Receiver
Sensitivity0.14μV (12dB SINAD@12.5kHz)
Adjacent Channel SelectivityETSI: 60dB@ 12. 5kHz 70dB@ 25kHz
IntermodulationETSI: 65dB@ 12. 5/25 kHz
Spurious Response RejectionETSI: 70dB@ 12. 5/25 kHz
BlockingETSI: 84dB
Hum & Noise40dB@12.5kHz 45dB@25kHz
Rated Audio Power Output0.5W
Rated Audio Distortion≤5%
Audio Response+1 to -3dB
Conducted Spurious Emission<- 57dBm
Transmitter
Power Output2W/ 4W（low/high）
FM Modulation11K0F3E@ 12. 5kHz 16K0F3E@ 25kHz
Conducted/Radiated Emission– 36dBm＜1GHz；- 30dBm＞1GHz
Modulation Limiting±2.5kHz@12.5kHz ±5.0KHz@25KHz
FM Hum&Noise40dB@12.5kHz 45dB@25kHz
Adjacent Channel Power60dB@ 12. 5kHz；70dB@ 25kHz
Audio Response+1 to -3dB
Audio Distortion≤3%
Environment
Operating Temperature-30℃ ~ + 60℃* *Radio only -Battery -20℃
Storage Temperature– 40℃ ~ + 85℃
ESD±8kV（Contact）；± 15kV（Air）
Dustproof & waterproofIP54
HumidityMIL-STD- 810C、D、E、F
Shoock and VibrationMIL-STD- 810C、D、E、F
