Key Features
UL913, CSA and TIA4950 Certificated Intrinsic Safety Radio

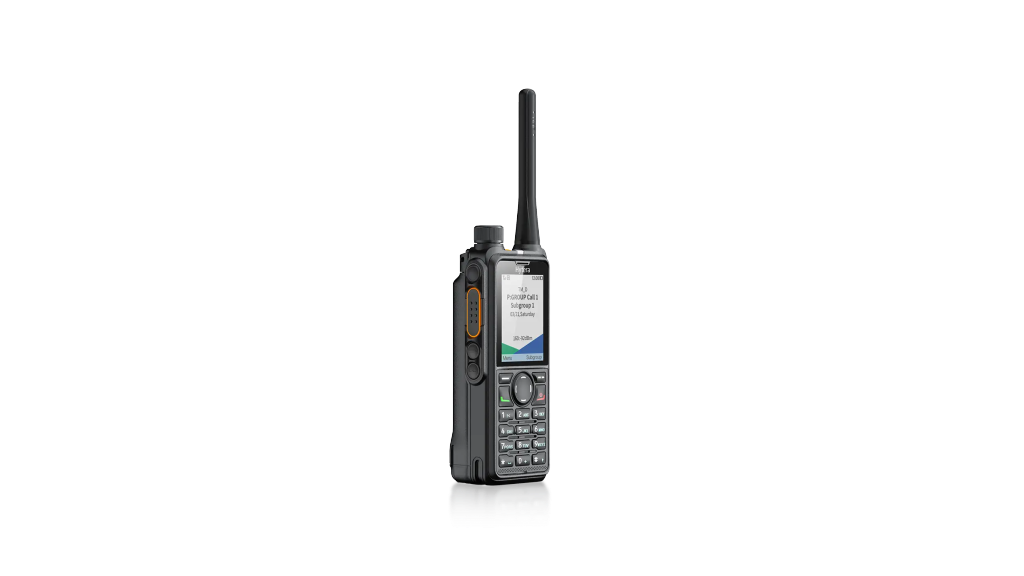

Hytera HP785 UL913 intrinsic safety radio is designed upon the requirement of USA UL913, Canada CSA and TIA4950 standards. The radio works safely in hazardous environments with explosive gas and dust particles.
Smart Explosion-proof Battery
The radio supports a smart Explosion-Proof battery, which makes it easier to monitor the battery status, such as lifetime, charging time, etc. The Explosion-Proof Battery Identification feature helps users avoid potential safety hazards caused by the use of non-Ex batteries.
Clear and Loud Audio
The ability to clearly communicate in ambient noise-riddled places is a key requirement of all radio users. The radio has AI-based noise cancellation technology to filter unwanted background noise, delivering louder and clearer audio in background noise conditions, which was never possible before. Meanwhile, the radio equips an optimized powerful loudspeaker that can help users to hear clear sounds even in a noisy environment.
Large and Distinctive Buttons
HP785 UL913 intrinsically safe digital radio has a tactile PTT button and a large emergency button for blind operations in challenging environments, allowing operatives to summon help from their companion or control centers in case of emergency as soon as possible.
Extended Coverage
HP785 UL913 intrinsically safe radio has improved sensitivity and extended conventional coverage, allowing the setup of each call, the delivery of each message, and the report of each location in every moment that matters. The increased coverage also improves user security in a cost-effective way.
Safety Features You Can Rely On
The radio supports optional digital mode Lone Worker, Man Down and Emergency Button with call interrupt as programmable features. These safety features ensure an alarm is raised, even if the channel is already busy.
| General | |
|---|---|
| Frequency Range | UHF: 350~470MHz; VHF:136~174MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Operating Voltage | 7.4V(rated) |
| Battery | 2850mAh Li-ion smart anti-counterfeit |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | 29 Hours(GNSS OFF), 25 Hours(GNSS ON) |
| Dimensions(H×W×D) mm | 132 x 55 x 36.5 |
| Weight | 389g |
| Display | LCD, 320×240 pixel, 262000 colors, 2.4 inch |
| BT | 5.0 |
| Anti-explosion levels | Class I, II, III, Division 1, Groups C-G, T4, -30°C to 60°C Class I, Division 2, Groups A-D, T4, -30°C to 60°C |
| Environmental | |
|---|---|
| Operating Temperature | -30℃～+60℃ (Radio only) |
| Storage Temperature | -40℃～+85℃ |
