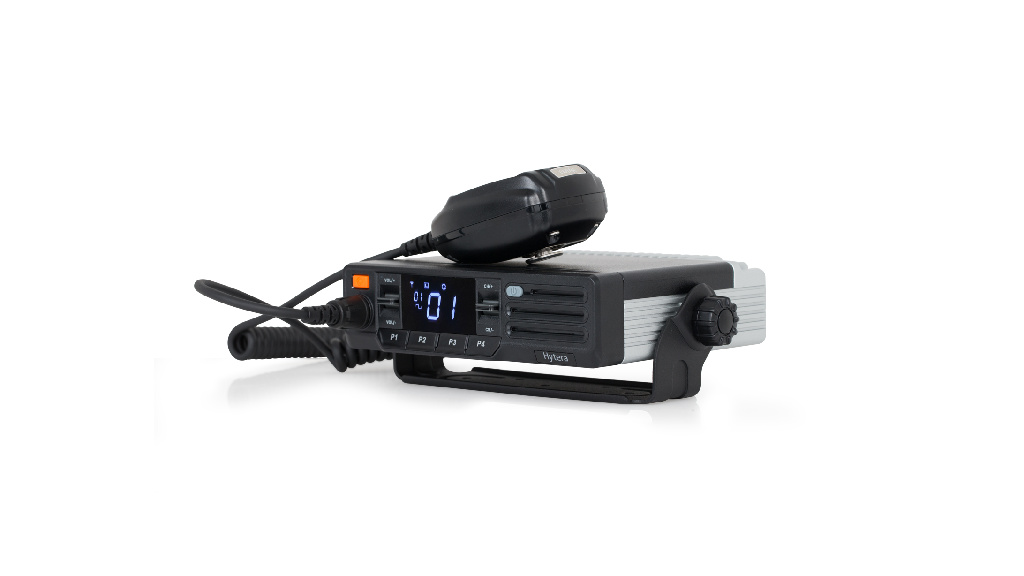

Hytera MD615 Commercial digital mobile radio, LED display

Key Features

BLUETOOTH AUDIO (OPTIONAL)

Wireless connectivity to audio devices to improve user experience.

DUAL MODE

Operating in Analogue and Digital mode to aid your migration from Analogue to Digital two-way radio technology.

GPS (OPTIONAL ACCESSORY)

Global Positioning System, enabling location based services to improve safety and control.

ROAMING

This feature allows the radio to switch between sites, ensuring seamless communication.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, communication slots can be shared to improve capacity usage with transmissions either direct to devices or to repeater.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.

DIGITAL ENCRYPTION

Ensuring your radio transmissions are secure with end-to-end encryption.

General data
Frequency Range	UHF:400-470 MHz; VHF:136-174 MHz
Channel Capacity	48 (16 channels per zone )
Zone Capacity	3
Operating Voltage	13.6 V±15%
Current Drain(Standby)	around 0.3 A
Current Drain(transmit)	45 W<12 A; 25 W<8 A; 1 W<3 A; 5 W<5 A
Current Drain(receive)	< 1 A
Dimensions(H×W×D) mm	164 mm×43 mm×150 mm
Weight	1100 g
Display	Digital display

Receiver
Sensitivity(Analog)	0.3 μV (12 dB SIN AD); 0.4 μV (20 dB SIN AD); 0.22 μV (Typical) (12 dB SIN AD);
Sensitivity(Digital)	0.3 μV/BER 5%
Rated Audio Power Output(External)	External（@8 ohm load） 8 W
Max. Audio Power Output(Internal)	Internal（@16 ohm olad）6 W
Max. Audio Power Output(External)	External（@8 ohm load）12 W
