Product Overview

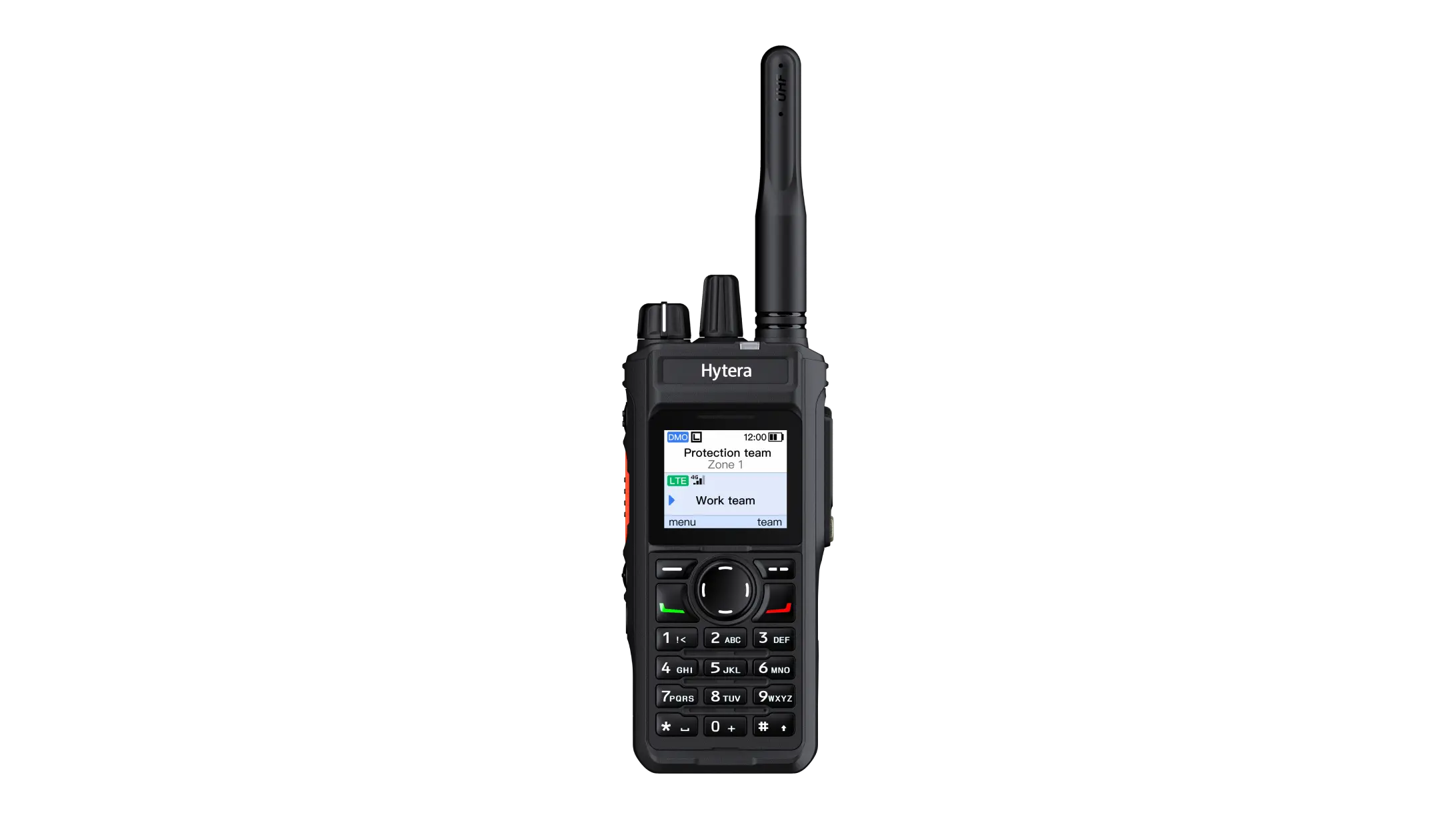

The Hytera PDC580 is a rugged dual-mode radio combining narrowband PMR and LTE-based PoC communication, with a 1.77-inch display and IP67 protection.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | PDC580 |
| Narrowband | VHF: 136-174MHz UHF: 400-470MHz |
| Broadband | LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
| Positioning | GPS, BDS, Galileo, GlONASS TTFF (cold start) < 50s (CEP for 95%, –130 dBm)Horizontal accuracy < 5m (CEP for 90%,–130 dBm) |
| Dimensions(H×W×D) mm | 128 mm x 55 mm x 37 mm |
| Weight | 345 g |
| Port | USB Type-C port 13-pin accessory connector |
| Display | 1.77-inch LCD, 160 x 128 pixels |
| Card Slots | 1 x Nano SIM card |
| Operating Voltage | 7.7 V (rated) |
| Battery | 3,000 mAh Li-Ion battery 2,400 mAh smart battery (optional) |
| TX Power | 1 W/5 W |
| Operating Temperature | -30°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Dust & Water Protection | IP67 |
| Rated audio output | 1.5 W |
| Channel spacing | 12.5 / 20 / 25 kHz; exact narrowband configuration required |
Request a Quote
Contact DAXUN TECHNOLOGIES for pricing and availability. Please include the model, quantity and required configuration in your enquiry.
